10 months 1 week ago #250355 by Catman
chuckb. THANK YOU Sir. Smile. Your CAT GAS R5 Manifold Complete System from Cat Cave Meeting Cat Inc Approval was Good enough for myself. But Now with Comments from yourself . Saying Cat Cave castings are the Best quality. From CHUCKB Himself. SMILE Really does mean a LOT. Cheers You Know all about the Cat Cave Castings Project History..

chuckb. Snr Catman really enjoys when you Ring him for a chat on the Phone. You need to Phone Catman Snr ASAP. Regarding your Idea of Cat Cave Re-Manufacturing the three different Versions of the BEST 60 thou to CAT 60 Manifold systems. If you Generate Enough Interest for a Batch Run. Like 48 off each part. All Interchangeable back to Blue Prints. Simple Parts to RE-MAKE. Only the Bigger Brother to the Cat 30 Manifold System. Hence EASY to Cast Up being a Larger Manifold System. Hence more SPACE inside the Cavity Jacket... Cat Cave can Re-Manufacture Them.

Thanks CM

Please Log in or Create an account to join the conversation.

More
10 months 1 week ago #250356 by Catman

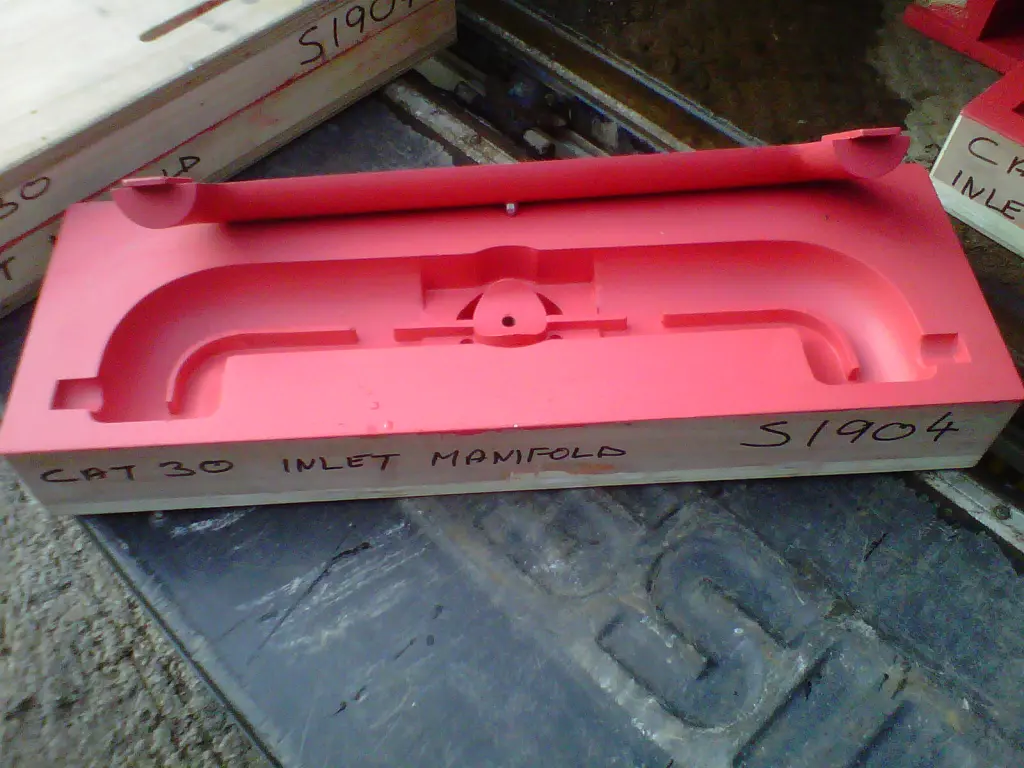

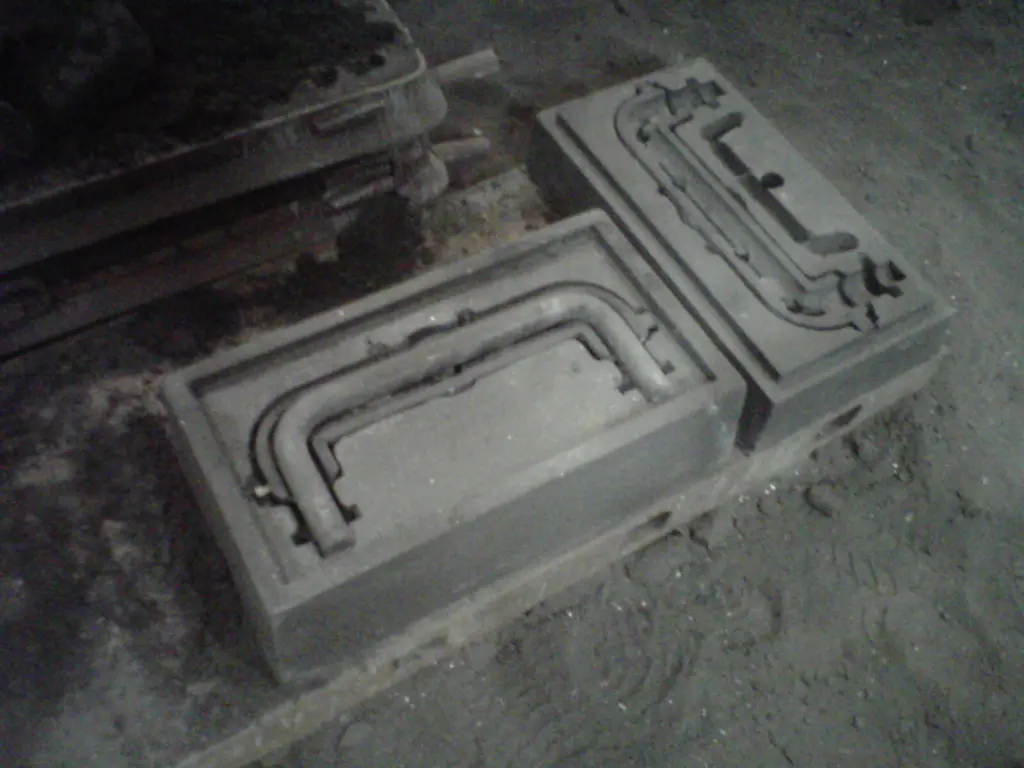

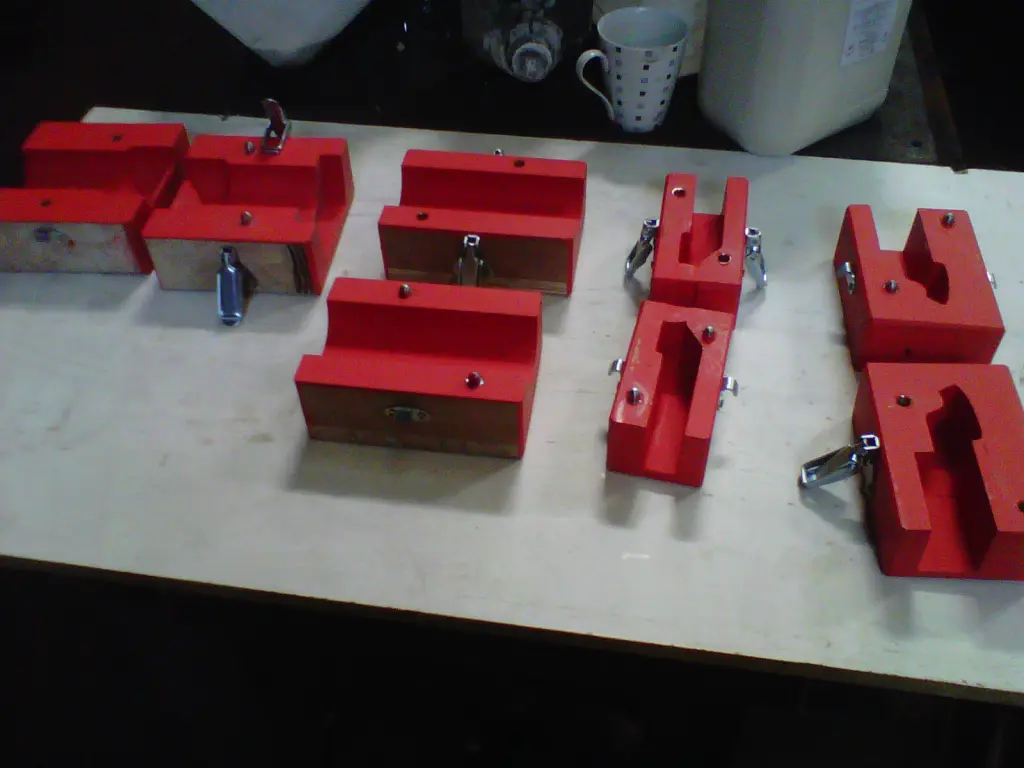

Manufactured a Press tool to Form the Core Plugs on a Die Set Press Tool. With Blank Off Steel Plates and Rubber Gaskets to Pressure Test the CORE as Per the Blue Print Data.

CM



Attachments:
The following user(s) said Thank You: steeltracs, Texas3T

Please Log in or Create an account to join the conversation.

More
10 months 1 week ago #250358 by Catman

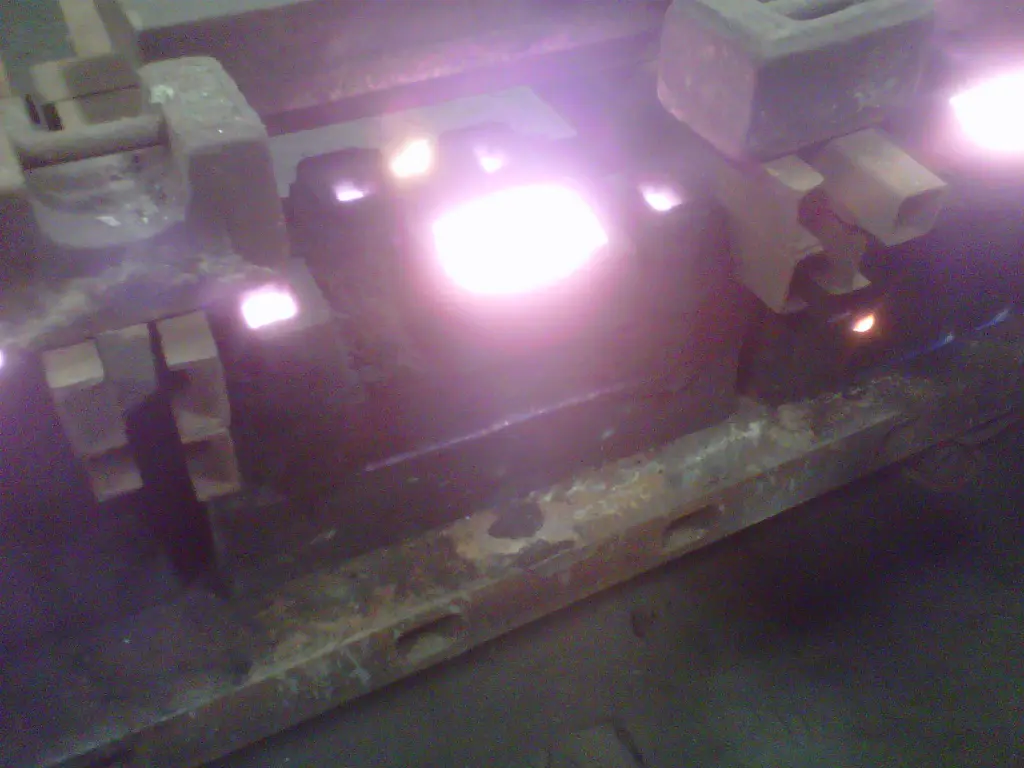

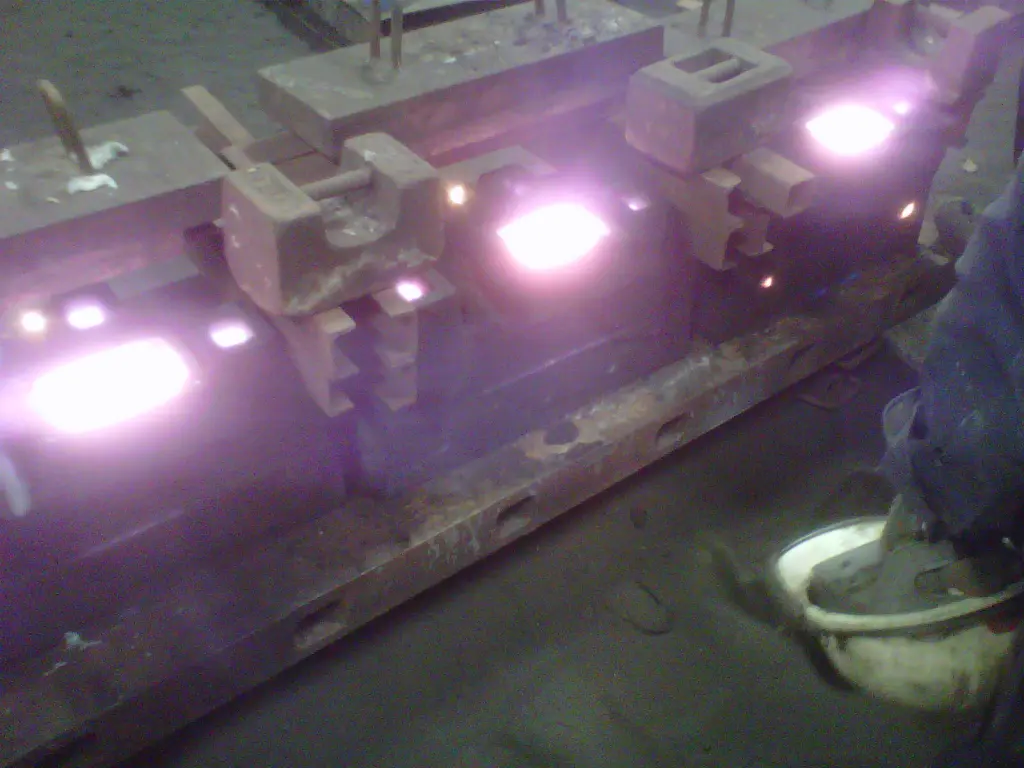

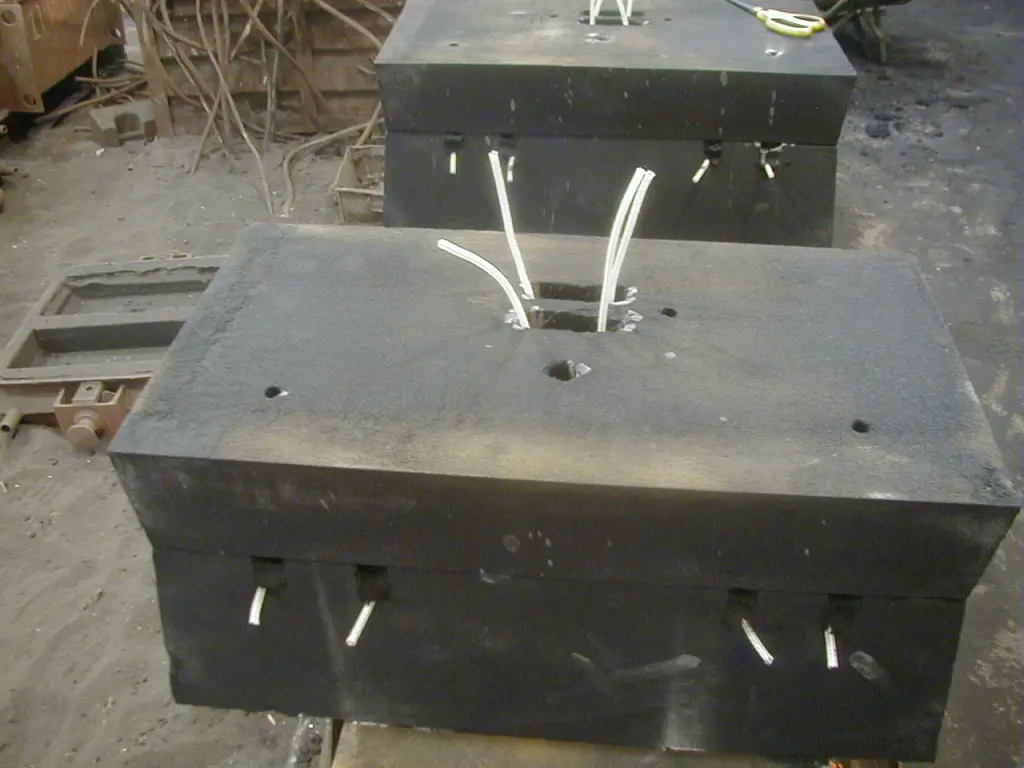

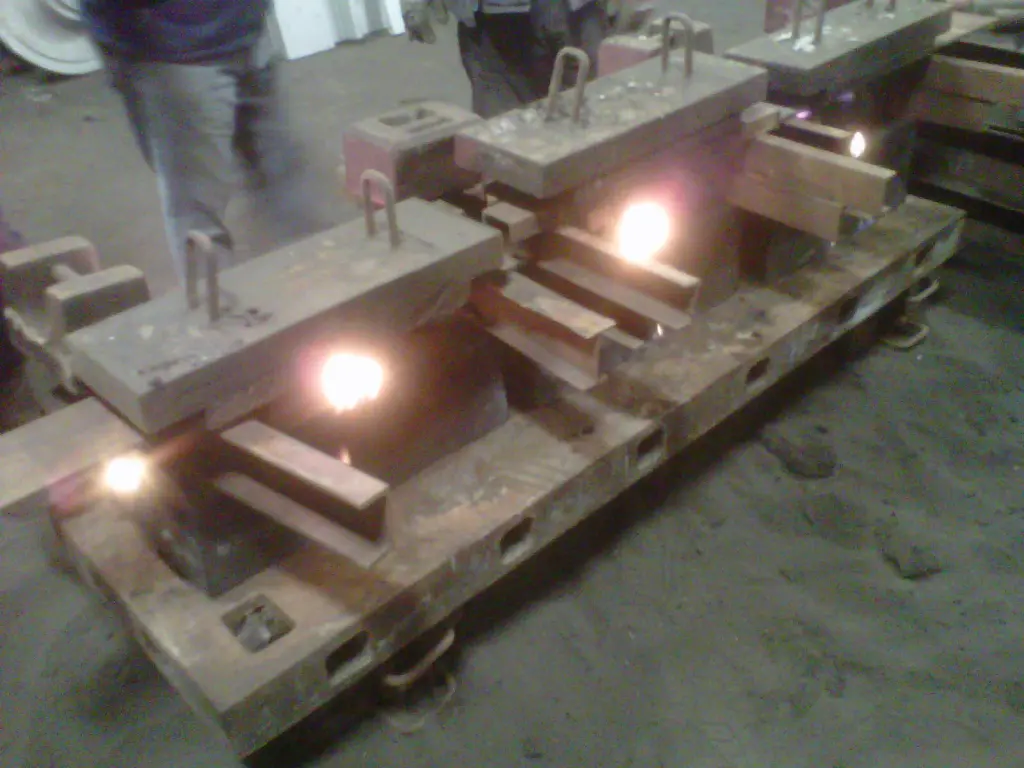

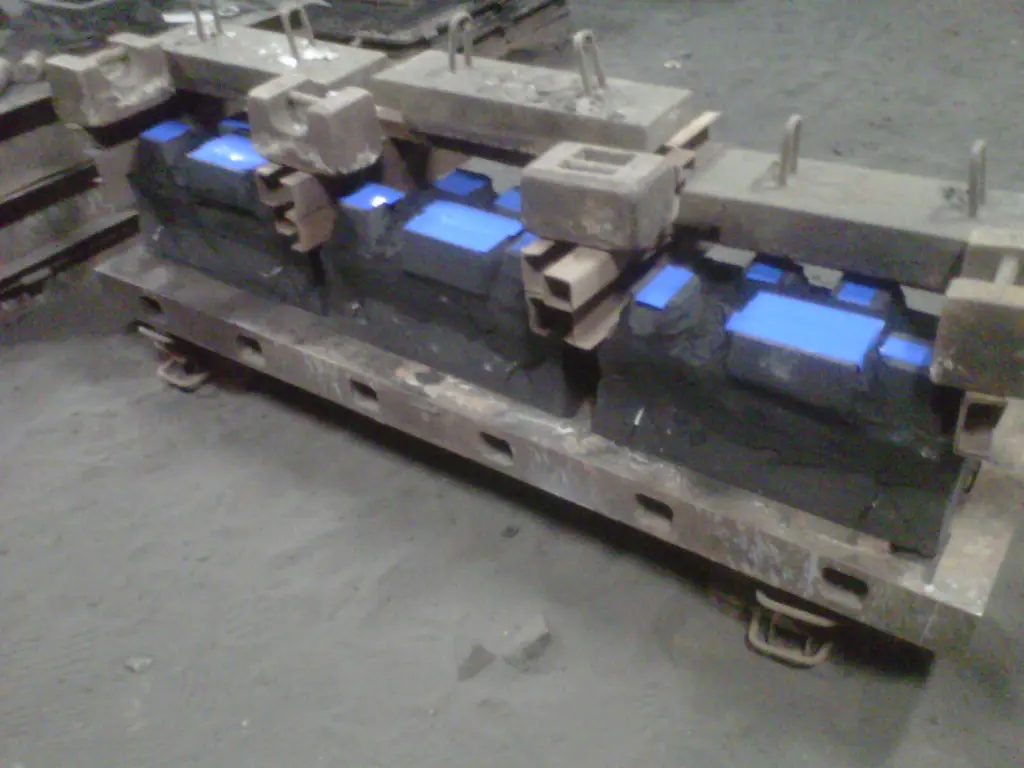

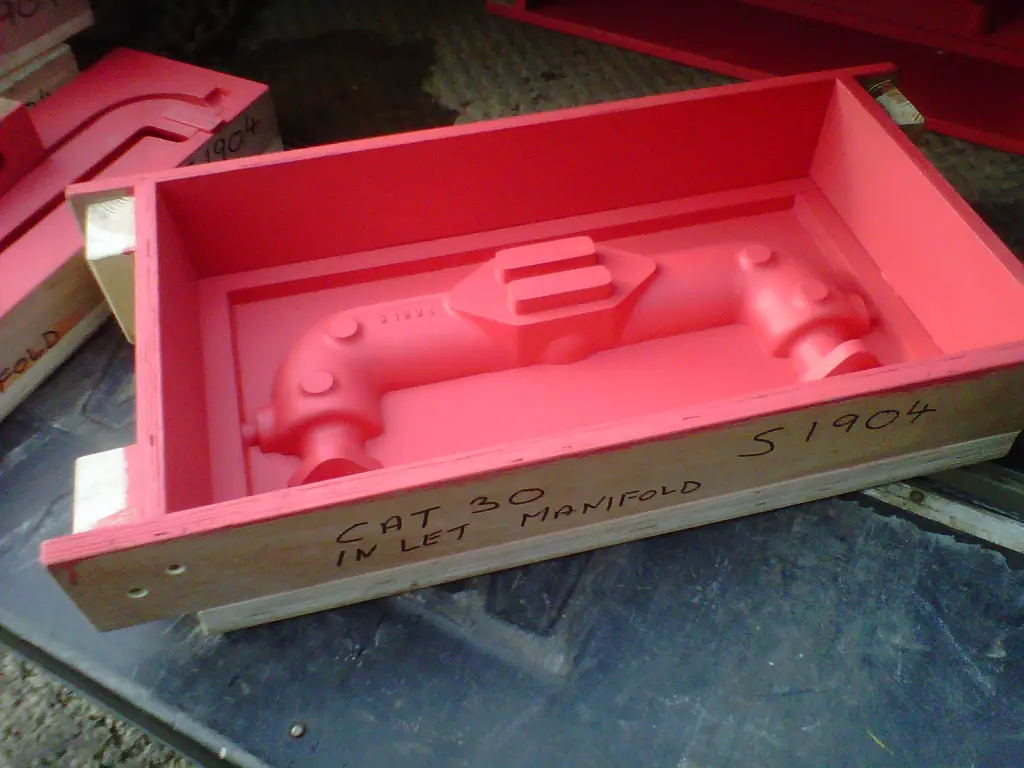

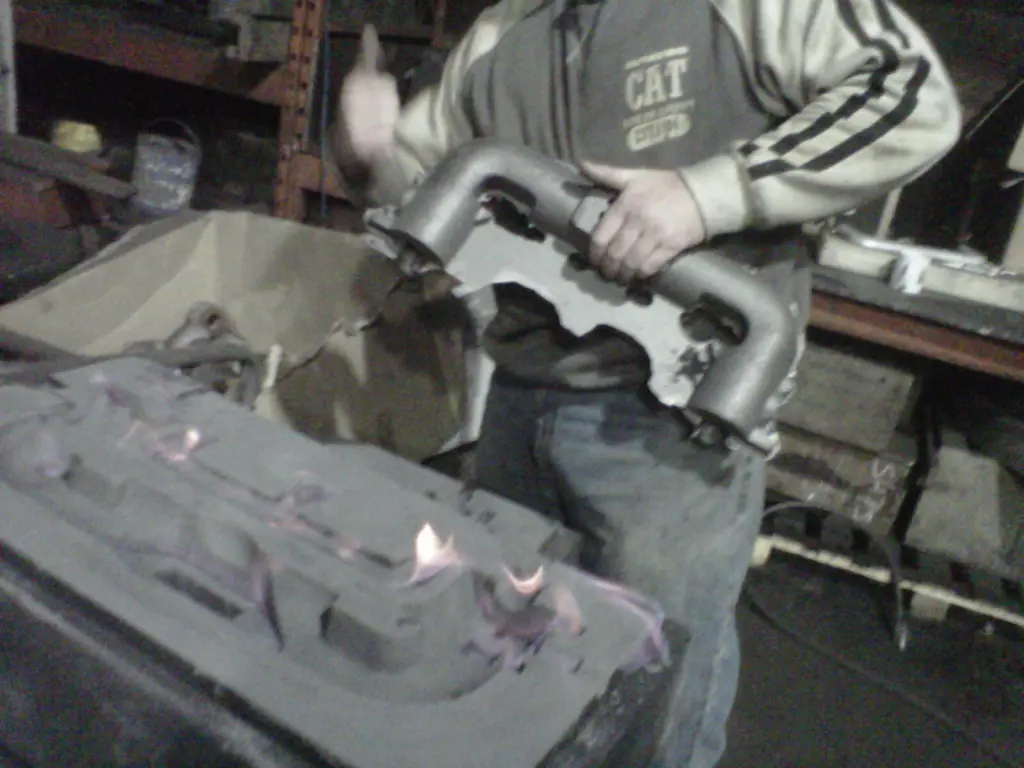

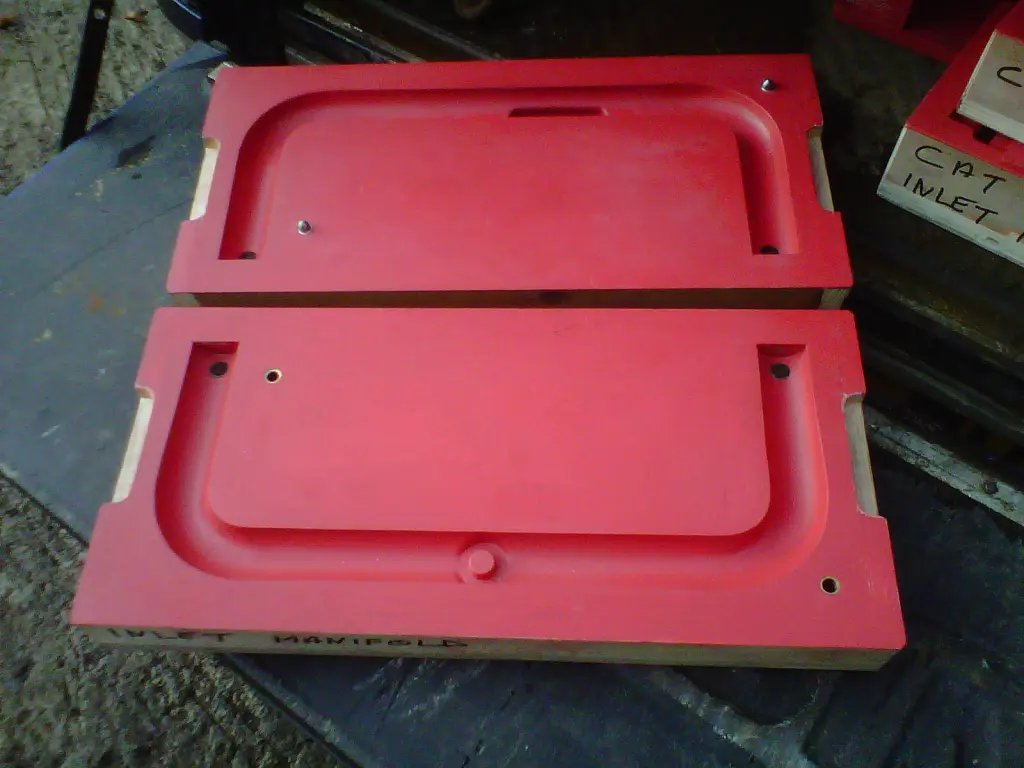

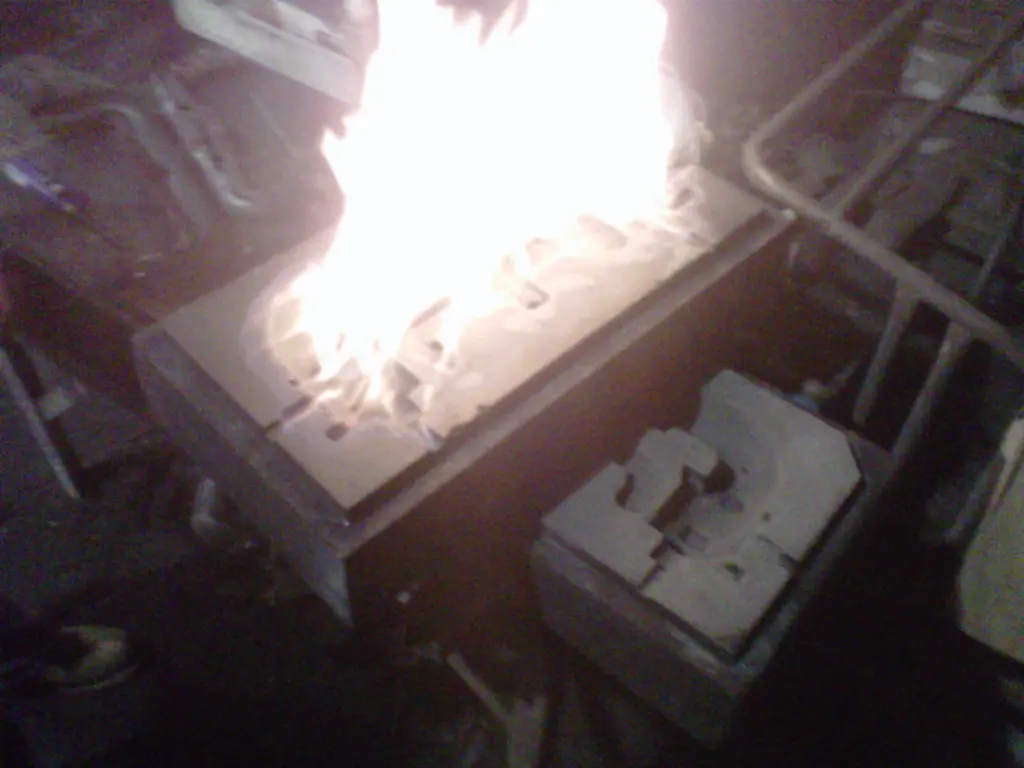

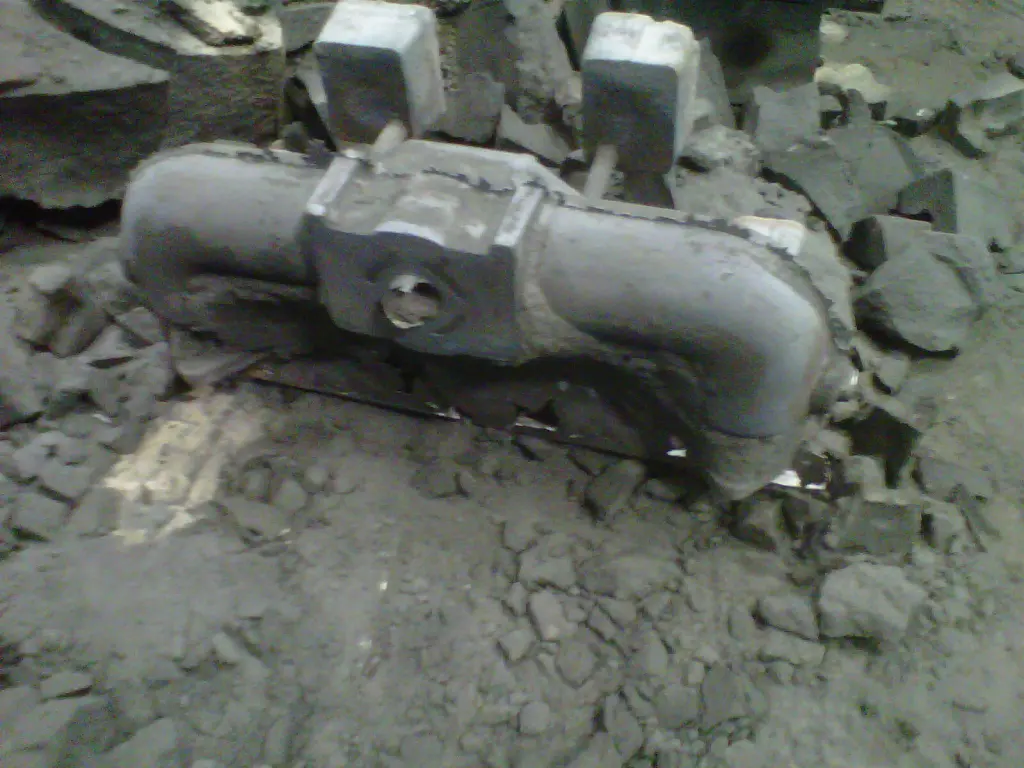

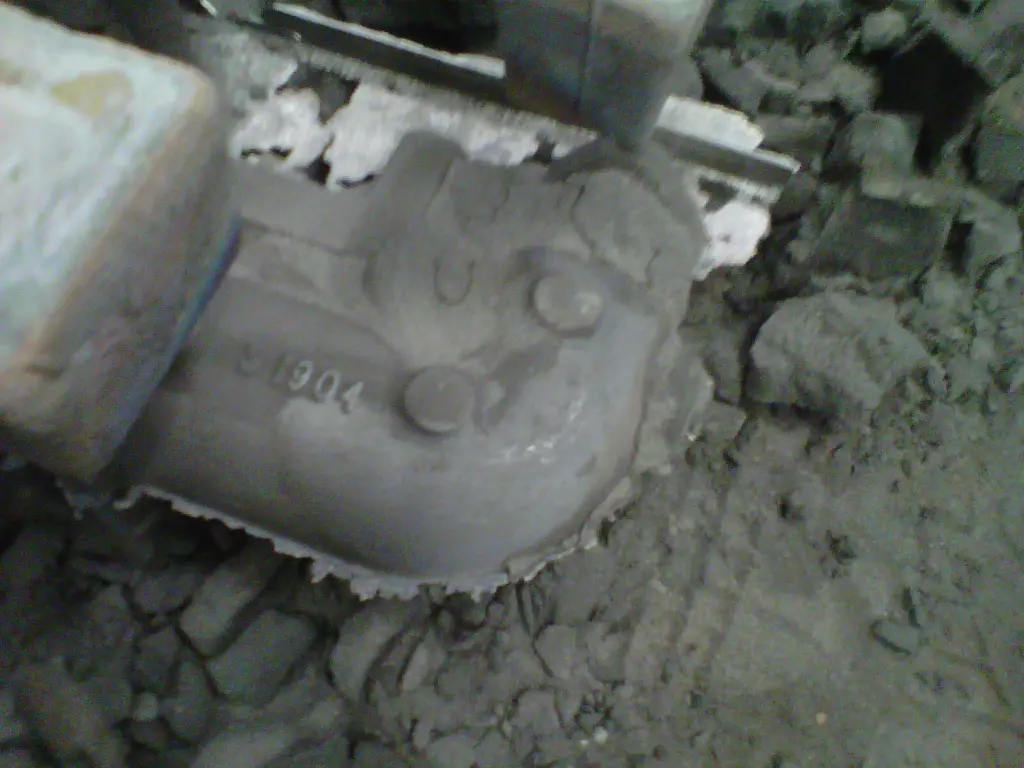

Some more parts in detail.

Word Up. Message back to Forum Members ?.

Cat Cave Remanufacturing.  Forging New Pinion Shafts and Forging  Bull Drive Gears back to Blue Print..Forgings, Heat Treatment , Grinding , Gear Cutting , Spline Bore Cutting etc.    as a New Forum Posting ?   Any Interest in Catman posting up ?  Let me Know.

CM











CM


Attachments:
The following user(s) said Thank You: steeltracs, Texas3T

Please Log in or Create an account to join the conversation.

More
10 months 1 week ago #250359 by trainzkid88
it really is a labour of love. and becoming a bit of a lost art. alot of engine parts these days are injection molded from reinforced plastic or machined from billets of material.

the making of hand made patterns is going by the wayside some what.

those parts have come out very nicely.
and yes thats the challenge getting enough people together to do a batch run.

Please Log in or Create an account to join the conversation.

More
10 months 6 days ago #250384 by Catman
trainzkid88. I Myself Spent Many years working in the Aluminium DIE-CASTING Sector. 24 Hours a Day for the Motor Industry. Casting Anything From Engine Blocks to Engine Sumps Die Cast. .

Trainzkid88 I have worked on a 3600 Ton Die Casting Machine . And Ended Up Rebuilding a IDRA 750 Ton Die Casting Machine Trucking Weight Loaded on Heavy Haulage Trucking. We needed a 100 Ton Mobile Crane to Load. And Highway Movement Order.

So Working in the High Volume Production Industry. Myself a Manufacturing Engineer by Title. Nice to Go BACK to Sand Casting Parts for My Hobby. Smiles. Thumbs Up.

Worked on Injection Moulding Machines Also. Made many Injection Mould Nozzles and Barrels with Heat Jackets and Heat Treatment on the Nozzle Nose End and SCREW . on THE Injection..

CM

Please Log in or Create an account to join the conversation.

More
10 months 5 days ago #250433 by trainzkid88
its a credit to you. i probably wouldnt be able to get you to make stuff for me as the freight cost would be killer.
you havent got a pattern for the final drive oil cups as used on the u series machines? we're missing one on our machine we have a hydrualic elbow and bung in there which works but it would be nice to have the factory setup.

Please Log in or Create an account to join the conversation.

More
10 months 4 days ago #250455 by Catman
Trainzkid88 . I have Manufactured many Rare Cat Parts and Sent over to Ozzy. To many OZZY States. HeHe. Apart from Lance Jones and David. Neil C. New South Wales, And Queen Lands Melbourne. South Africa on the List Also.. HeHe. Cat-Cave Shipping around the GLOBLE DEAL.

Cat-Cave also Air MAIL CATCAVE CASTINGS Manifolds Direct from CAT CAVE HQ with CAT-CAVE Brass ACID ETECH Plates and Decals all back TOO CAT INC AND CAT-CAVE CAT DEAL

cm

Please Log in or Create an account to join the conversation.

More
10 months 3 days ago #250475 by trainzkid88
yeah those brass tags would be fairly cheap postage as there only thin sheet. what would be nice is a starting procedure tag they have gone for decals by the time my machine rolled off the line as its a 1954 model d4 6u

Please Log in or Create an account to join the conversation.

More
10 months 2 days ago #250480 by Catman
trainzkid88. If your Part you NEED is a RARE hard to Find ? Part. Let me Know ? and part number ?. Generate some Interest for a Batch Run. I will Look Into IT for You..

I get a Good Rate on Air Fright from Cat-Cave HQ to any country around the Globe. for Cat-Cave Castings. I use Insulation Board for Air Fright Boxing up. Lightweight and Cut to fit the Parts Inside the Box. Also good INSULATION at 30,000 ft in the Cargo Area on the Flight Over.

CM

     \

Attachments:
The following user(s) said Thank You: Haus

Please Log in or Create an account to join the conversation.

More
10 months 2 days ago - 10 months 2 days ago #250481 by Catman
Trainzkid88, I drawn the Line at Pre 1936. Apart from the Fred H. California Museum Collection Piece a D2 1951 Electric Start Wide Gauge Tail Seat. Inside my CAVE Possibly the only one This Side. Moved on from the End of the Brass Plate Project, Followed the Same Blue Print Data But Printed on Vinyl Instead of Acid Etching Brass.

Using Top End Spec Industrial Vinyl . Laminated. All back to Blue Prints.

Instructions Changed from ACID ETCH BRASS to Decal back in 1932.

Cat-Cave stocked Instruction Decals Include the Following. After the Cat-Cave Brass Acid Etch Black Emanuel and Sir lack Clear Coating (Oven Cooked in the process as per BLUE PRINT DATA)..

Caterpillar Instructions Decal No 1 1B 8785 7C / 8C / 25 / 28
Caterpillar Instructions Decal No 2 1F 6987 Gas 35 / 40 / R5
Caterpillar Instructions Decal No 3 2B 3748 22
Caterpillar Instructions Decal No 4 1B 9016
Caterpillar Instructions Decal No 5 2F 149 RD4
Caterpillar Instructions Decal No 6 2B 2301 RD6


.



CM




Attachments:
Last edit: 10 months 2 days ago by Catman. Reason: edited
